Meeting with Kevin

Default behavior of claude

When ran with the following prompt

Generate SystemVerilog Assertions that hold true for the RTL file below.

<rtl>
{rtl}
</rtl>

opus was used

./scripts/small_bench.sh -v -m opus -p prompts/absolute_min.txt

The results of this run is stored under results/20260831T180809_absolute_min

Results

sockit_owm

  • claude automatically generated bind statements
==============================================================
SUMMARY
==============================================================
Properties
Co
nsidered : 137
assertions : 81
- proven : 75 (92.5926%)
- bounded_proven (user) : 0 (0%)
- bounded_proven (auto) : 0 (0%)
- marked_proven : 0 (0%)
- cex : 6 (7.40741%)
- ar_cex : 0 (0%)
- undetermined : 0 (0%)
- unknown : 0 (0%)
- error : 0 (0%)
covers : 56
- unreachable : 13 (23.2143%)
- bounded_unreachable (user): 0 (0%)
- covered : 43 (76.7857%)
- ar_covered : 0 (0%)
- undetermined : 0 (0%)
- unknown : 0 (0%)
- error : 0 (0%)
determined

sha3

  • claude exhibited different behavior this time
File Comment
f_permutation inline

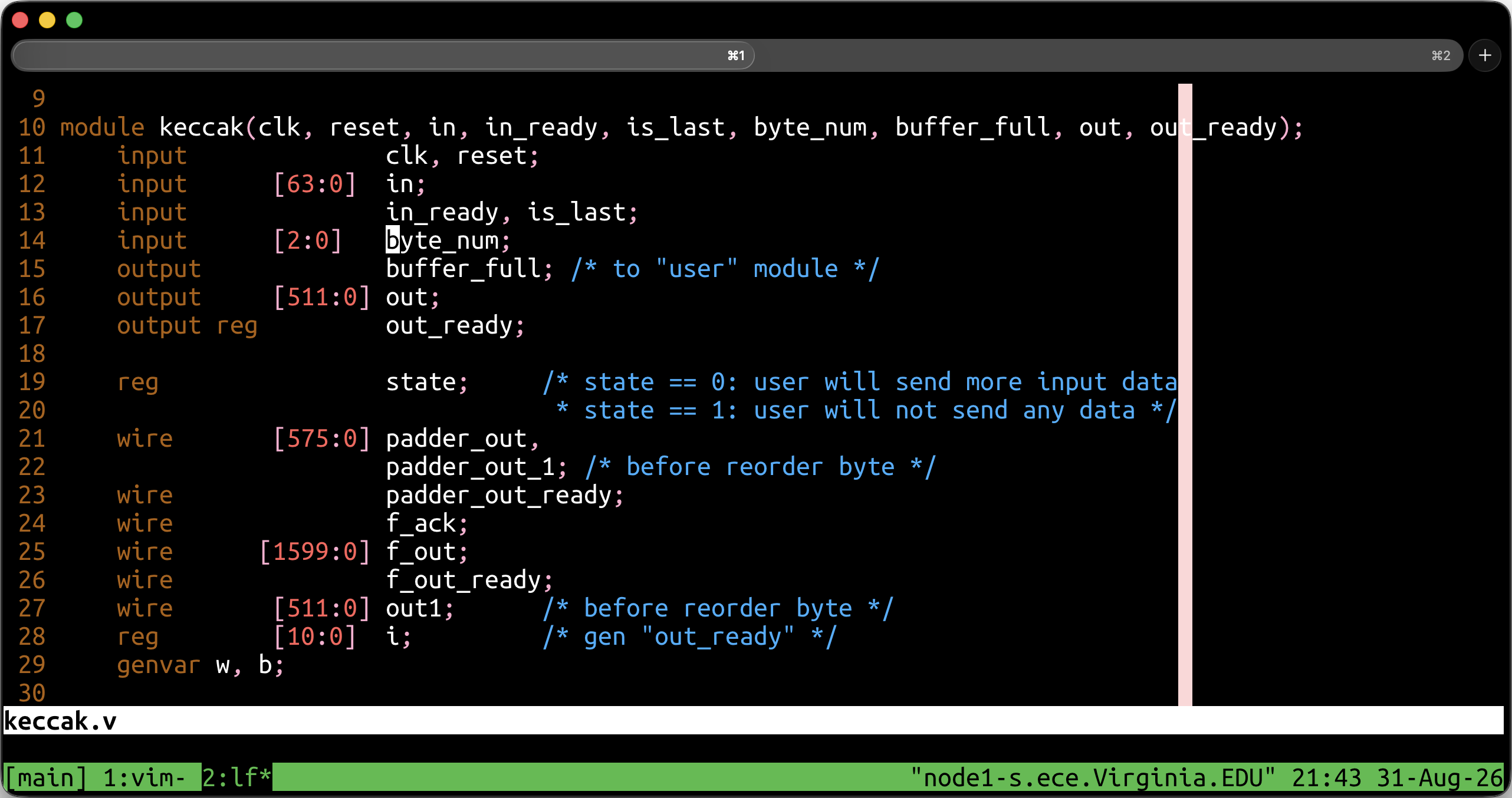

keccak inline
padder inline
padder1 bind but immediate assertions
rconst2in1 bind but immediate assertions

Didn’t compile

Take-aways

  • claude has knowledge of bind
  • We should specifically ask for concurrent assertions

absolute_min_with_some_ins.txt

  • I added it should be bind-able to the original module
  • sockit_owm compiled just fine but sha3 still didn’t compile

abs_compile

  • I explicitly added it should be compilable and there were still issues with sha3

barebones

  • Not asking it to generate any bindings
assert property (@(posedge clk) out[63:0] == {out1[479:472], out1[487:480], out1[495:488], out1[503:496], out1[511:504], out1[519:512], out1[527:520], out1[535:528]} || 1'b1);

ltl

  • Maybe but need more instructions

claude

// calc recurrence exactly as coded: set by accept, cleared the cycle
// after i[10] (the 12th and last round-pair update) fires
property p_calc_recurrence;
   @(posedge clk) disable iff (reset)
     1'b1 |=> (calc == (($past(calc) & ~$past(i[10])) | $past(accept)));
endproperty
a_calc_recurrence: assert property (p_calc_recurrence);
