Cadence Meeting Slide Preparation

LLM Work

  • Baseline Verilog knowledge test
    • Taken over by benchmarks such as RTLLM/Verilog-Eval
    • Basically hdlbit.xyz questions
    • Pretty bad before but frontier models now ace it
  • LLMs for assertion generation
    • Lots of approaches
      • NL2SVA
      • RTL2SVA
    • But no standardized benchmark that is satisfactory
    • Rudimentary metrics
    • Invalid comparisons
  • Work on a benchmark right now
    • Purely RTL2SVA
      • We feel like this is the first step to take
      • Bug hunting and other tasks require too much trust in the LLM
  • With benchmarks we found recurring behavior
    • buffer overflow
    • VERT noticed that |-> and |=> are confusing
    • bind was a big problem before

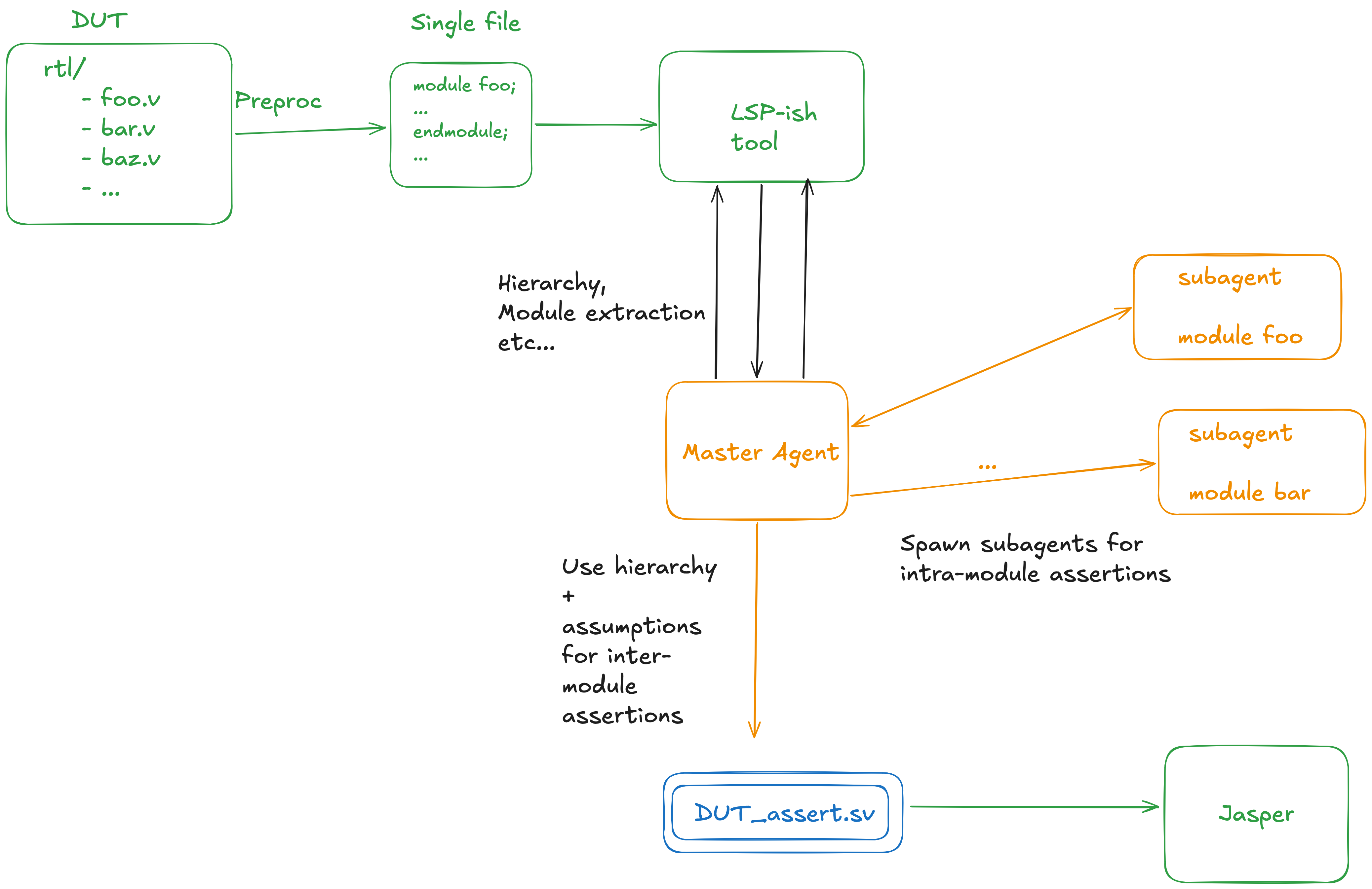

    • Hierarchical naming
  • Cost and Scalability

Latest results

sockit_owm

Model #(Assertions) Proven % Proof Core Coverage
Haiku 26 57.69 47.13
Sonnet 73 97.26 78.16
Opus 50 96 68.39
Fable 43 97 77.87

i2c

Model #(Assertions) Proven % Proof Core Coverage
Haiku 27 100 68
Sonnet 126 40 85
Opus 76 88.15 88.57
Fable 146 89.72 98.42

ethmac

Model #(Assertions) Proven % Proof Core Coverage
Sonnet 352 88% 72%
