Current CVA6 verification strategy

  • Verification is hosted in a separate repo https://github.com/openhwgroup/core-v-verif
  • It doesn’t seem to be formal. Their repo description is Functional verification project for the CORE-V family of RISC-V cores.
  • UVM, as far as I know, seems to be some sort of a standardized harness to perform testing.
    • It includes useful data structures and constructs to enable easier testing
    • This also allows for greater composability
  • This functional verification essentially compares the register state of a golden model with DUT.
  • The granularity seems to be just registers. They say that internal pipeline stuff are ignored. They focus on logical correctness.

Formally verifying the “ISA”

  • I’m not entirely sure what this means. I found this under CV32E40P and not under CVA6. There were some notes about formally verifying the ISA and they use Siemens RISC-V app. They say that there are 128 assertions in total.
  • But I’m confident that this is not in the granularity that we are focusing on.
  • There is these spreadsheets with names of properties but not actual SVA or LTL
  • https://github.com/openhwgroup/core-v-verif/tree/master/cv32e40p/docs/VerifPlans/Formal/base_instruction_set
  • I tried grepping them in the parent repo (cv32e40p) and the verification repo (core-v-verif) and I wasn’t able to find any match

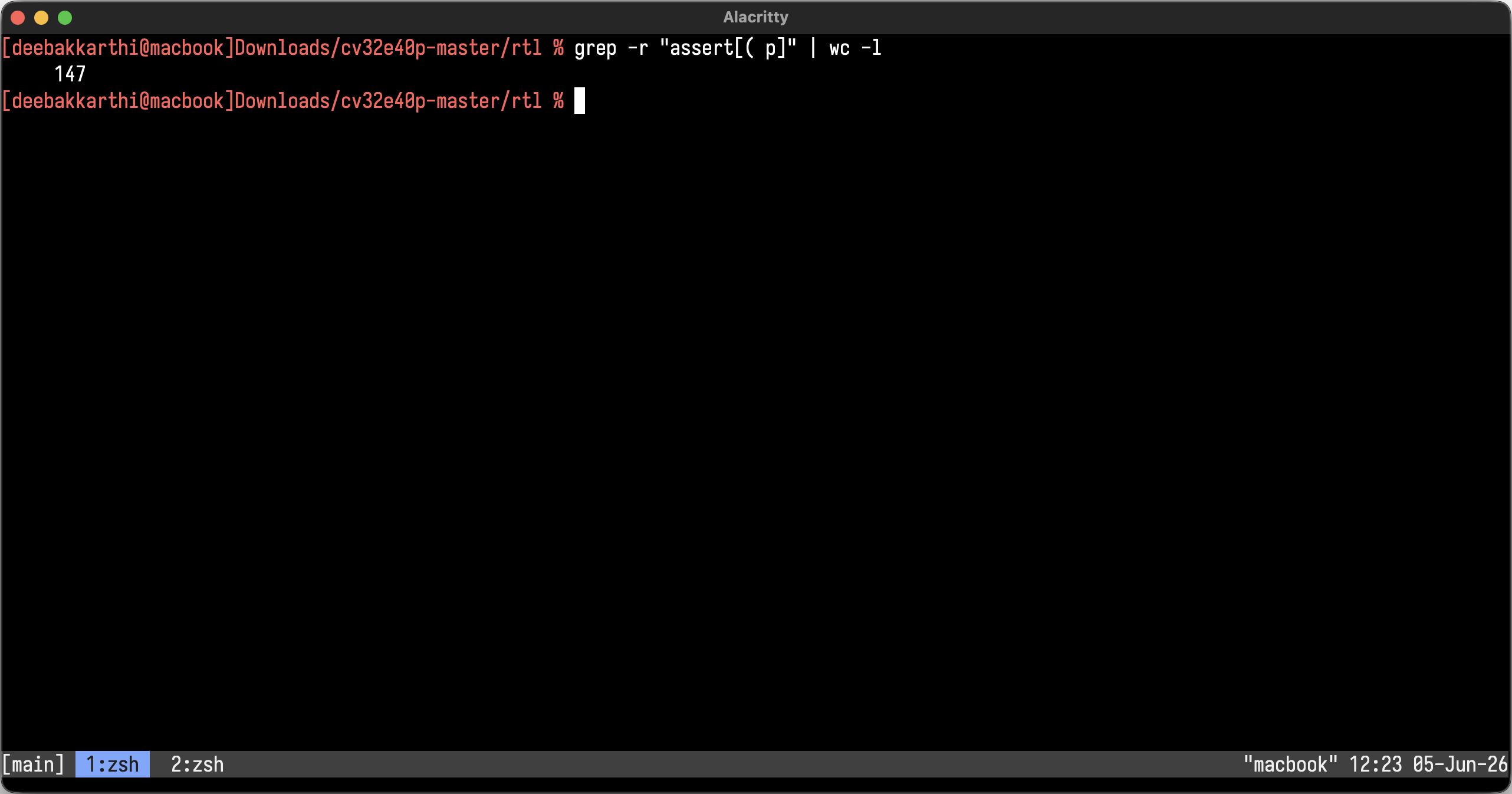

  • There were some assertions in cv32e40p but there were only 147

In conclusion, the effort is mostly on verification through simulation and logical correctness of implementing the RISC-V ISA.
